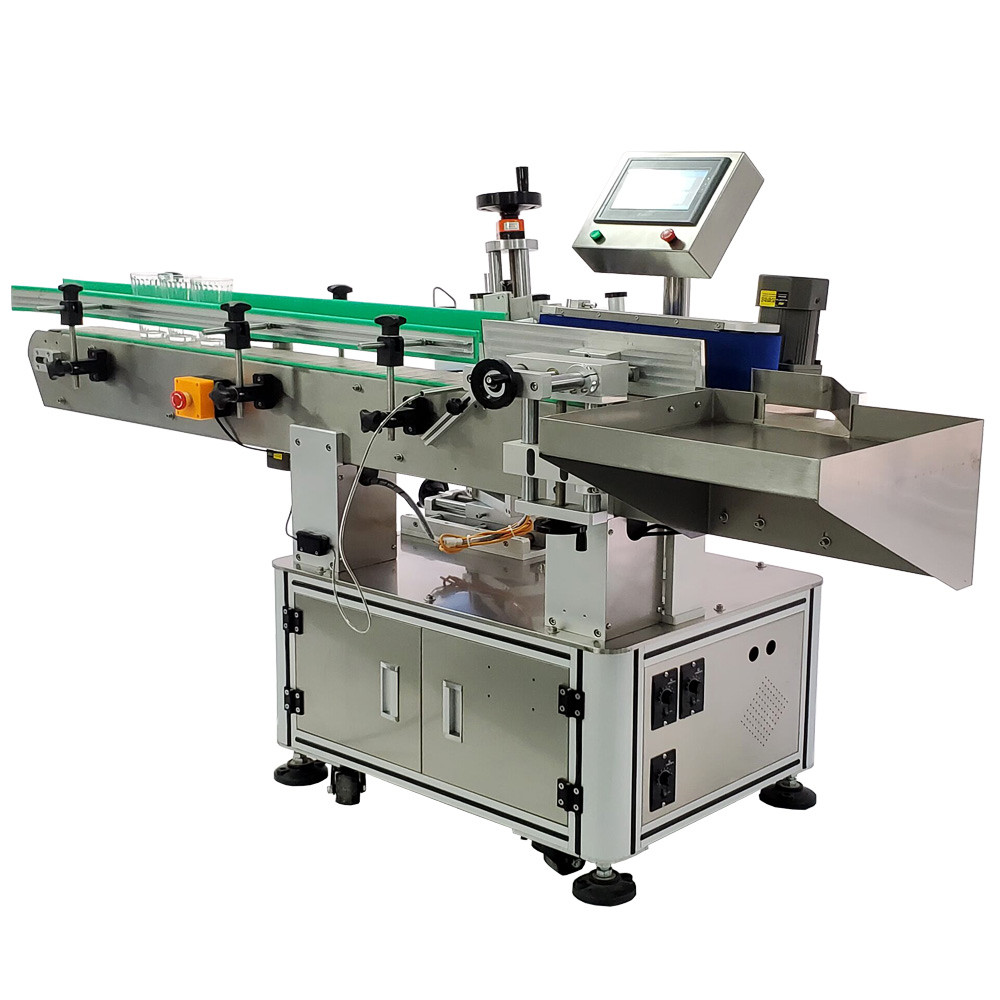

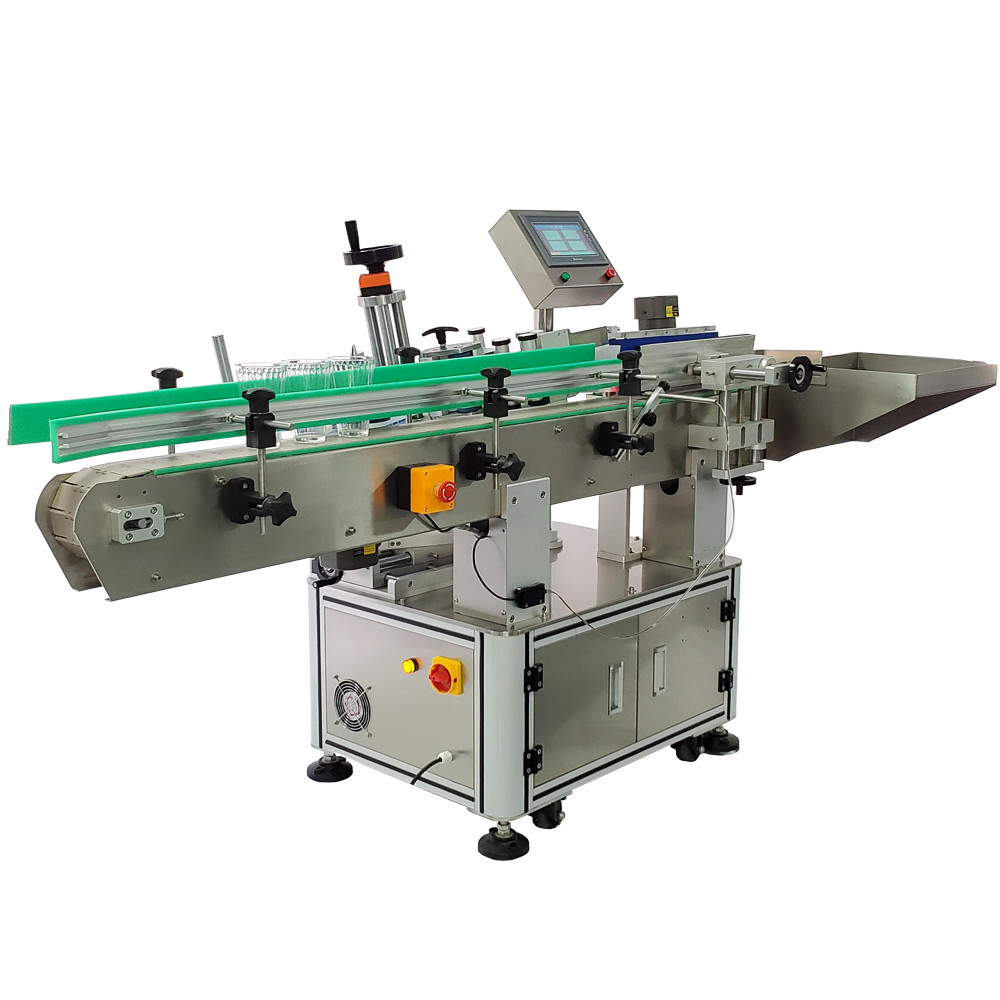

Automatic Rolling Round Bottle Labeling Machine | High Speed Labeler
The automatic rolling round bottle labeling machine is designed for high-speed labeling of various cylindrical products and small-taper round bottles, widely applicable to cosmetic bottles, wine bottles, pharmaceutical vials and similar round containers. It supports full-wrap labeling, half-wrap labeling, and front & back double-sided labeling with freely adjustable spacing between front and rear labels to meet diverse packaging requirements.
Ideal for mass production in the food, cosmetics, daily chemical, wine, beverage and pharmaceutical industries. The machine can be equipped with an optional fixed-position detection device to achieve precise circumferential positioning and fixed-point labeling for standardized product packaging.
Customers can also choose an optional ribbon coding module to print production batch numbers, manufacturing dates and expiry dates during the labeling process. Integrating labeling and coding in one single process eliminates secondary procedures, greatly streamlines production flow and improves overall line efficiency.
Key Features
-
Wide Compatibility: Suitable for all kinds of cylindrical bottles and small-taper round containers such as cosmetic bottles and wine bottles.
-
Flexible Labeling Modes: Supports full wrap, half wrap and front-back dual labeling with arbitrary adjustable label spacing.
-
Precision Positioning Option: Optional fixed-position detection device for accurate circumferential fixed-point labeling.
-
Integrated Coding Function: Optional ribbon coder for real-time printing of batch, date and expiry information while labeling.
-
High Production Efficiency: Combines labeling and coding in one step, saving labor and shortening production cycle time.
-
Stable Automatic Operation: Continuous rolling feeding ensures stable running and consistent labeling effect for mass production.
Applications
Widely used in food, cosmetics, daily chemicals, wine brewing, beverage, pharmaceutical and general packaging industries.
| 技术参数Technical parameters | 以下为标准机型技术参数，其他特殊功能和要求，可量身定做 Technical parameters below is standard model,special functions and requirements can be customized |
| 型号Model | FLM-01 |
| 贴标精度Labeling accuracy | +/-1mm(不含产品、标签误差) |
| 贴标速度Labeling speed | 40-120个/分钟（与产品尺寸有关） |
| 适用产品直径Product diameter | 20-80mm |
| 适用标签尺寸Applicable label size | 长度：20-300mm,底纸宽度：20-95mm |
| 整机尺寸Whole size | 约2130x1150x1260mm(长x宽x高) |
| 整机重量Weight | 约213kg |
| 适用标签内径Applicable label roll inner dia. | 76mm |
| 适用标签外径Applicable label roll outer dia. | 280mm |
| 电源Power supply | 220V/110V/50Hz |
