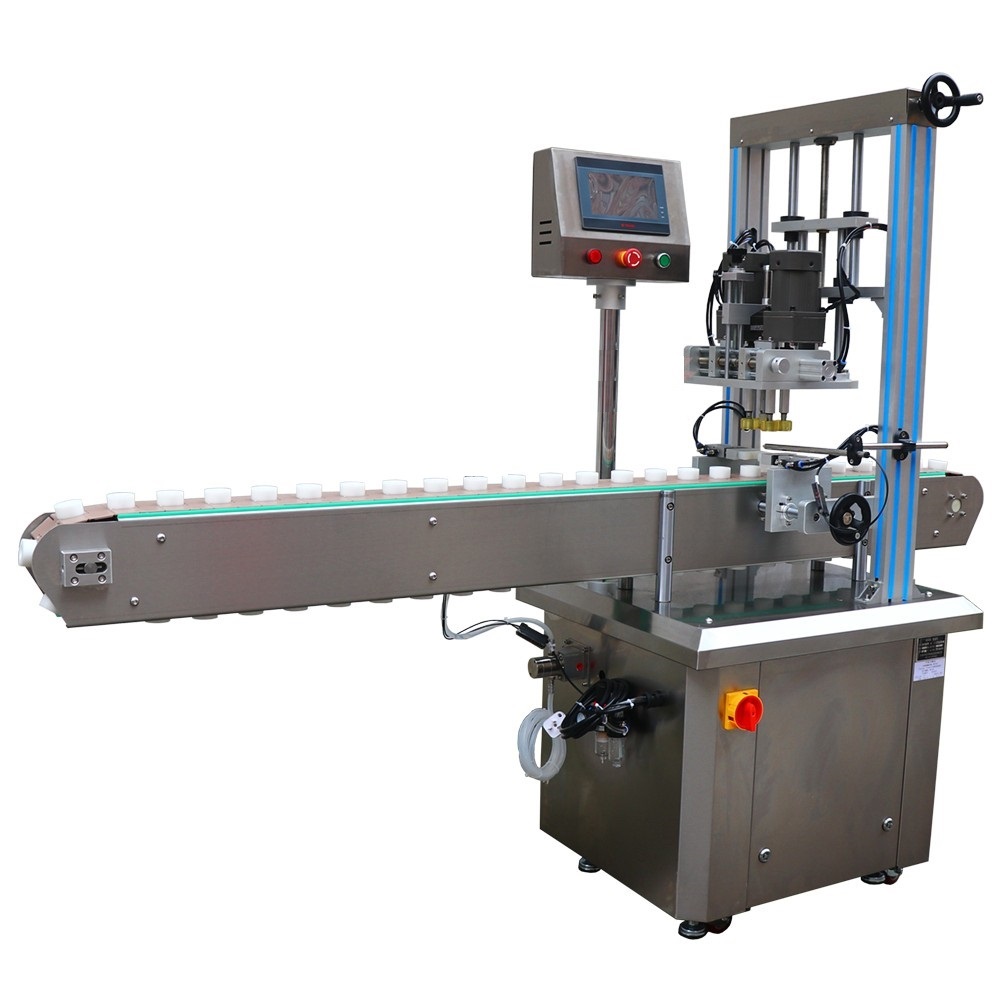

Capping Machine

< >

Product Name : Capping Machine

Model NO. : CM-01

Product Directory: Liquid Filling Systems > Capping Machine

Product Description :

Capping Machine
This high-performance straight through capper is designed to handle a wide range of cap shapes and sizes. It is easy to run,easy to adjust and use a minimum of components to provide versatile,high quality capping.

The versatile cap is designed for rapid change over by using a minimum of cap size change parts. One sorter,chute, and adjustable chute end can handle most caps in either the 13-38mm or 38-70mm size range. A simple quick-change adjustable chute end that snaps into position without tools is needed for each major cap size variation.

Operation principle
Cushioned gripper belts are adjustable to move containers of nearly any size and shape smoothly through the capping operation without the need for timing stars or feed screws. Caps are positioned from a chute in the cap escapement assembly, picked up by the container neck finish and positioned for tightening.

An independently driven overhead assembly with matching sets of polyurethane disc assures tight capping. The first set of disc gives caps a quick initial twist. The next set of discs draws the cap onto the container neck. The cap sorter, tightening discs, and machine/conveyor are controlled through three electrically controlled by variable speed drives.

Standard features
Fully automatic operation
Rotary vertical cap sorter and feeder with pinsorting wheel
Stainless steel cap chute
Custom designed cap chute spacers
Adjustable cap chute end with cap stabilizer and wiper
One set of bottle gripper belt synchronized to conveyor drive
Two sets of tightening stations
Photoelectric cap chute sensor to control cap backlog

Options & accessories
Increased hopper size for added capacity
Division dial and inner ring for caps whose height exceeds their diameter
Vibratory bowl feeder or centrifugal feeder available
Additional cap chute end,cap stabilizer and wiper for cap with special shapes
Cap delay for capping plastic “F”style jugs
Additional tightening disc stations
Automatic wear compensation for tightening disc stations moves wheels in toward centerline when wear is experienced
Tightening disc clutches
Elevation screws for quick height adjustment of bottle gripper belts
Second set of bottle gripper belts for unstable bottles
Profile sorting ring for caps with irregular shape
Snap-cap pressing package for use in addition to or in lieu of screw-on type mechanism
Special corrosive environment package
Overcapper or fitment insert design

技术参数Technical parameters	以下为标准机型技术参数，其他特殊功能和要求，可量身定做 Technical parameters below is standard model,special functions and requirements can be customized
型号Model	CM-01
旋盖速度Capping speed	50-60瓶/分钟
盖子尺寸Screw cap size	20-65mm(盖子直径)
瓶子宽度bottle width	40-90mm
整机尺寸Whole machine size	L.2000 x W.650 x H.1650mm
电源Power supply	AC 220V/110V/50Hz
气源 Gas	0.5-0.8MPa
整机重量Total weight	100-200kg
