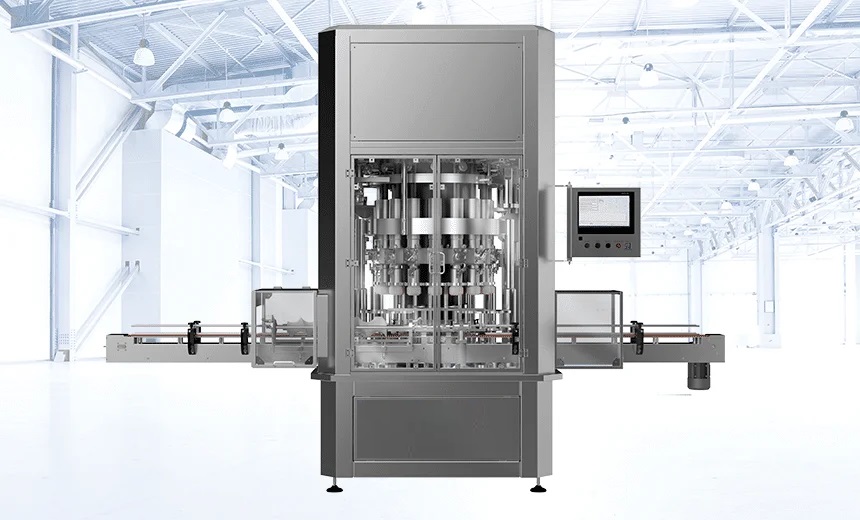

Rotary Piston Filler

< >

Product Name : Rotary Piston Filler

Model NO. : RPF

Product Directory: Liquid Filling Systems > Filling Machine

Product Description :

Rotary piston filler(RPF)

Fast,flexible,and reliable,our rotary piston fillers are automatic machines that accommodate a wide range of containers and products of most viscosities at high production speed of 600+ per minute. Available in different frame sizes and models; from four to thirty-six filling nozzles,the RPF provides fill ranges from 100 to 700 fluid grams.
Features include improved starwheel drive system with factory set overload clutches and improved spiral drive clutch,both offering more precise adjustment and never needing re-adjustment. Other developments are an improved piston drive cam assembly for quieter operation and more precise fills and an upgraded volume adjustment mechanism with maintenance free linear bearings including tamper resistant limit switches to maintain factory settings.
Overhead driven pistons
Featuring fine fill piston adjustments,achieving +/-0.5% fill accuracy. These cylinders and pistons are easily removed for cleaning or changeover to other sizes.
Key Features
Improved star wheel drive system with maintenance free factory set overload clutches.
Improved spiral drive clutch.
Belt adjustment mechanism on spiral drive for faster,easier maintenance.
Improved volume adjustment mechanism featuring maintenance free linear bearings in place of complex gib system. Includes tamper resistant limit switches to maintain factory settings.
Improved bottle detect sensor with easier adjustment and more reliable operation under severe conditions.
Real time hopper level display on control panel.
No-drip positive shut off valve design.
Flush in place systems.
Easy cleaning and changeover no-drip positive shut off valve design.
Applications
Hand sanitizer,honey,shampoo,mayonnaise,lotions,creams,BBQ sauce,gels,liquid soap,salsa,baby food,ketchup,salad dressing,jam,relish,peanut butter,deodorant,paint,and many others.
Specifications

Model	RPF-4X	RPF-8	RPF-8G	RPF-12	RPF-12G
Number of nozzles	4	8	8	12	12
Max Fill volume(ml)	1400	1400	5000	1400	5000
Max container diameter(mm)	127	127	203	127	203
Max container height(mm)	305	305	356	305	356
Container height adjustment	Manual	Manual	Electrical	Manual	Manual
Piston stroke adjustment	Manual hand wheel	Manual hand wheel	Manual hand wheel	Manual hand wheel	Manual hand wheel
Max speed(CPM)	60	120	120	180	180
Air requirements(LPM)	30	30	30	30	30
Reservoir capacity(L)	50	50	130	95	245
Conveyor length(mm)	3100	3100	3700	3700	3700
Electricals	380V50Hz 3ph	380V50Hz 3ph	380V50Hz 3ph	380V50Hz 3ph	380V50Hz 3ph
Dimensions(Crated) LxWxH
Gross weight(kg)	1295	1590	2454	1860	3636

X=upgradeable to 8 head filler 0G= gallon filler
Q=quart filler(maximum fill volume for these frame sizes)

Model	RPF-16	RPF-24	RPF-24Q	RPF-30Q	RPF-36Q
Number of nozzles	16	24	24	30	36
Max Fill volume(ml)	1500	1500	1100	1100	1100
Max container diameter(mm)	120	130	90	90	90
Max container height(mm)	305	305	305	305	305
Container height adjustment	Manual	Electrical	Electrical	Electrical	Electrical
Piston stroke adjustment	Manual hand wheel	Manual hand wheel	Manual hand wheel	Manual hand wheel	Manual hand wheel
Max speed(CPM)	240	360	360	450	540
Air requirements(LPM)	30	30	30	30	30
Reservoir capacity(L)	130	380	200	300	470
Conveyor length(mm)	3100	3100	3700	3700	3700
Electricals	380V50Hz 3ph	380V50Hz 3ph	380V50Hz 3ph	380V50Hz 3ph	380V50Hz 3ph
Dimensions(Crated) LxWxH
Gross weight(kg)	1860	4085	2500	3636	4085
