Inline Fill-To-Level

Inline Fill-To-Level

The inline Fill-To-Level Models are moderate speed fillers,ruggedly designed,yet precision built for long,trouble-free liquid filling operation. Each model features a fill-to-level design with filling accuracy maintained to within 1% of targeted fill level. The inline series includes three easy to operate models-manual,semi-automatic,fully automatic,with machine cycle speed up to 8 cycles per minute. Either gravity,pressure,vacuum, or combination filling systems can be utilized.
A diverse range of products, including cosmetics,chemicals,food and beverage can be filled on these versatile machines.
Configurations
IFLM- Manual Filler
Suggested for use either a lab model or as a small batch production line. The operator simply slides containers onto a stainless steel slide track to an adjustable stop point. The nozzles are now centered above the container openings. The operator lowers the spout bar,which brings the nozzles down into the containers and seals the openings. At this point,the filling cycle begins. When the operator sees product discharging from the overflow nose hose, the cycle is complete. The head is then raised and the container stop is manually released to charge the containers.
IFLM- Semi-Automatic Filler
Model IFLM functions in the same manner as the IFLM,but is intended for future growth to full production capacities. This machine is designed to be easily upgraded to Model IFLA by adding a powered conveyor and PLC for a fully automatic unit.

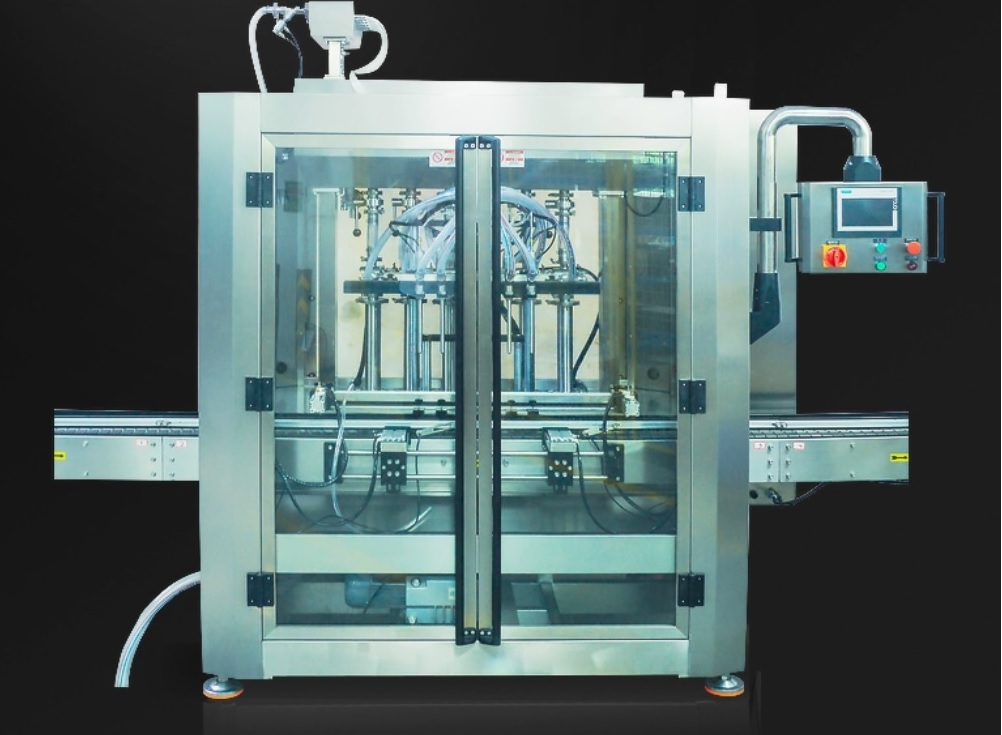

IFLA- Automatic Filler
Model IFLA incorporates an automatic conveyor and PLC to control the functions of the filling operation. Containers are conveyed into the filling area. When the correct amount of containers have entered the machine, the conveyor stops. The spout bar then descends,sealing the nozzles against the container openings. The containers are filled to the predetermined fill level,product overflow is then automatically returned to the reservoir. The filling cycle is completed based upon time factors programmed into the PLC. When the fill cycle is complete,the head is pneumatically raised,triggering the conveyor to restart,discharging the filled containers via the starwheel.
Features
Configured with 2 to 12 filling nozzles
Stainless steel supply tank
PLC(IFLA)
Fully automatically operation(IFLA)
Type 316 stainless steel wetted contacted parts
Type 316 stainless steel filling nozzles
Automatic overfill(IFLA)
Pneumatic operation of fill head
PVC flexing tubing
